 ตัวแทนจำหน่ายJoysun Single Stage Rotary Vane Vacuum Pump Model X 40 - X 100
   JOYSUN Single Stage Rotary Vane Vacuum Pump Model X 40 - X 100

Single Stage Rotary Vane Vacuum Pump Model X 40 - X 100
Good characteristic:
1.  High utmost vacuum rate, it can be less than 0.5mbar
2.  High deflating speed
3.  Low noise while working, lower than 67db
4.  Reliable structure to prevent oil circumfluence
5.  Strong capacity in deflating the vapor
6.  Keeping inlet air pressure 1.33*103Pa, it can be still working on.
7.  Protecting environment; an oil fog clearer is set in the vacuum, and no oil fog in the exhaust air
8.   Tight structure, scientific and reasonable design,  and it is easy to install in the industry system




 Technical Parameter:
Item Unit X-40 X-63 X-100
Rated speed m3/h 40 63 100
Utmost pressure mbar 0.1-0.5 0.1-0.5 0.1-0.5
Noise dB(A) 64 65 67
Working temperature 83 85 85
Oil consumption L 1 2 2
Vapour allowed pressure mbar 40 40 40
Vapour suction rate kg/h 0.6 1 1.6
Inlet size inch Rp11/4 Rp11/4 Rp11/4
Motor rated power kW 1.1 1.5 3
Motor rated speed rpm 1440 1440 1440
Total weight kg 48 58 72
Overall size cm 65×30×28 65×43×29.5 72×43×29.5

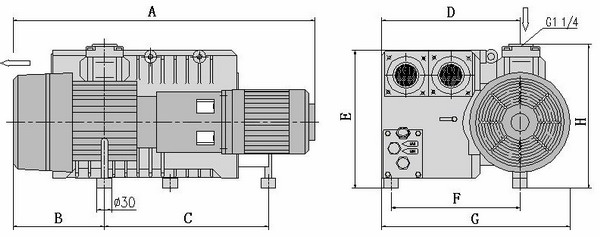

Structural Dimensions:

Single Stage Rotary Vane Vacuum Pump Model X 40 - X 100



Dimension A B C D E F G H
X-40 650 150 330 195 270 220 300 280
X-63 650 150 325 295 285 270 430 295
X-100 720 180 350 295 285 270 430 295
Application Range:
*Packaging, Sticking
——Packaging used by vacuum or inert gases for varied foods, metal items and electronic elements.
——Sticking for photographs and advertisement sheets.

*Lifting, Transportation, Sticking, Loading/Unloading
——Lifting of glass plate
——Sticking of board, plastic plank
——Loading/Unloading of non-magnetism item
——Loading/Unloading and transportation of paper sheets and paper boards in paper making and printing industry
——Transportation of powder materials

*Drying, Air-eliminating, Dipping
——Dipping and drying of electronic elements
——Air-eliminating of moulds, dopes and vacuum furnace
*Others:
——Laboratory Devices     ——Medical Treatment Devices
——Freon Recycling           ——Vacuum Heat Treatment
