 Oilless Rotary Vane / Compact /Dry Vacuum Pumps

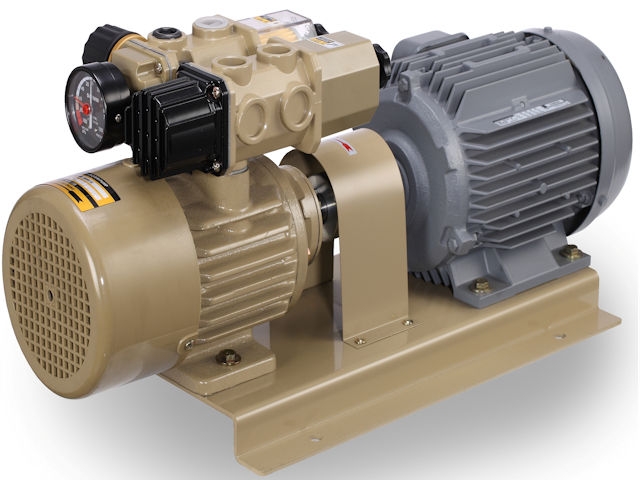

DS STANDARD DRY VACUUM PUMP

Features:
• Dry Running Rotary Vane
• Capacity ranging from 235-1,350 L/min
• Easy to operate and maintain motor and pump
• Max vacuum 675mmHg with integral suction filter
• Low cost
• Running low noise

Model
NominalSpeed
(r.p.m)
(50/60Hz)


Discharge
Capacity
(L/min)
(50/60Hz)
Vacuum
(Torr)
Frequently
Use
Vacuum
(Torr)
UsualExhaust
Pressu
re
PipeOrifice MotorRating Dimension
(LxWxH)mm
Weight
(kg)
DSS-3E 1450  280 100
(650mmHg)
310
(450mmHg)
0.5kg/cm2 3/4"PT 3Phase0.37kw4P 480x222x265 21
1730  330
DSS-5E 1450  450 80
(660mmHg)
260
(500mmHg)
0.5kg/cm2 3/4"PT 3Phase0.75kw4P 560x270x265 27
1730  530
DSS-6E 1450  610 80
(660mmHg)
260
(500mmHg)
0.5kg/cm2 3/4"PT 3Phase1.5kw4P 650x270x283 36
1730  730
DS-8E 945  1130 80
(680mmHg)
360
(400mmHg)
0.5kg/cm2 1"PT 3Phase
2.2Kw6P
775x325x357 80
1135  1350

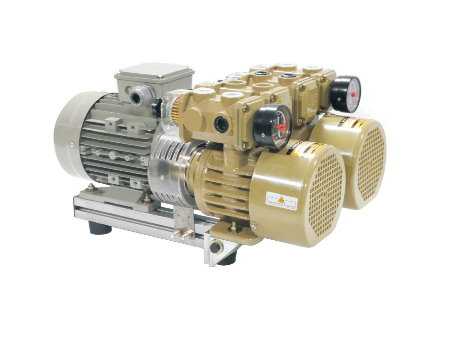

DSD DRY VACUUM PUMP
  • Dual pump and gear belt driving design.

  • Separate funtioning from vacuum and pressure.

  • Specially designed for printing industry or for these separate funtion involved users.

  •

Model NominalSpeed
(r.p.m)
(50/60hz)
Discharge
Capaciy
(L/min)
(50/60Hz)
Vacuum
(Torr)
Frequently
Use
Vacuum
(Torr)
Usual
Exhaust
Pressur
PipeOrifice MotorRating Dimension
(LxWxH)mm
Weight
(kg)
DSD-52E 1450  405 80
(680mmHg)
360
(400mmHg)
0.6kg/cm2 3/4"PT 3Phase1.5Kw4P 560x330x310 46.5
1730  480
DSD-62E 1450  575 80
(680mmHg)
360
(400mmHg)
0.6kg/cm2 3/4"PT 3Phase2.2Kw4P 645x330x310 61
1730  685
DSD-82E 945  1130 80
(680mmHg)
360
(400mmHg)
0.5kg/cm2 1"PT 3Phase3.7Kw4P 720x590x400 138
1135  1350
