 ตัวแทนจำหน่ายJoysun Single Stage Rotary Vane Vacuum Pump Model X 160 - X 302
     JOYSUN Single Stage Rotary Vane Vacuum Pump Model X 160 - X 302



Good characteristic:
1.  High utmost vacuum rate, it can be less than 0.5mbar
2.  High deflating speed
3.  Low noise while working, lower than 67db
4.  Reliable structure to prevent oil circumfluence
5.  Strong capacity in deflating the vapor
6.  Keeping inlet air pressure 1.33*103Pa, it can be still working on.
7.  Protecting environment; an oil fog clearer is set in the vacuum, and no oil fog in the exhaust air
8.   Tight structure, scientific and reasonable design,  and it is easy to install in the industry system

I. Technical Parameter:
Item Unit X-160 X-202 X-250 X-302
Rated speed m3/h 160 200 250 300
Utmost pressure mbar 0.1 0.1 0.1 0.1
Noise dB(A) 70 72 72 74
Working temperature 65 72 81 83
Oil consumption L 5 5 7 7
Vapour allowed pressure mbar 40 40 40 40
Vapour suction rate kg/h 2.5 4 4.5 5
Inlet size inch Rp2〞 Rp2〞 Rp2〞 Rp2〞
Motor rated power kW 4 4 5.5 7.5
Motor rated speed rpm 1440 1440 1440 1440
Total weight kg 157 157 195 211
Overall size cm 86×50×44 86×50×44 98×56×44 101×56×44

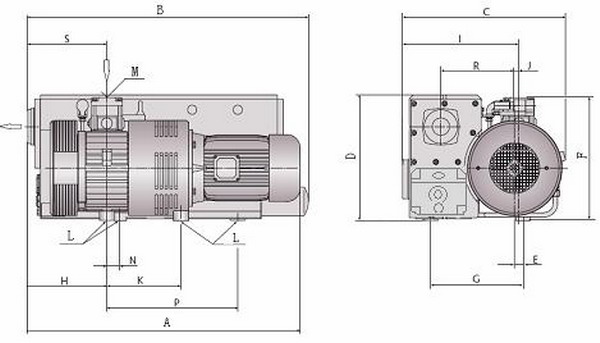

Structural Dimensions:


 Dimension A B C D E F G H I J K L M N P
X-160 835 855 495 435 25 425 310 225 345 15 240 4×M10 Rp2〞 35 420
X-202 835 855 495 435 25 425 310 225 345 15 240 4×M10 Rp2〞 35 420
X-250 856 980 560 440 30 430 355 260 385 20 300 4×M10 Rp2〞 40 390
X-302 856 1010 560 440 37.5 430 355 260 385 27.5 300 4×M10 Rp2〞 40 390


Application Range:
*Packaging, Sticking
——Packaging used by vacuum or inert gases for varied foods, metal items and electronic elements.
——Sticking for photographs and advertisement sheets.

*Lifting, Transportation, Sticking, Loading/Unloading
——Lifting of glass plate
——Sticking of board, plastic plank
——Loading/Unloading of non-magnetism item
——Loading/Unloading and transportation of paper sheets and paper boards in paper making and printing industry
——Transportation of powder materials

*Drying, Air-eliminating, Dipping
——Dipping and drying of electronic elements
——Air-eliminating of moulds, dopes and vacuum furnace
*Others:
——Laboratory Devices     ——Medical Treatment Devices
——Freon Recycling           ——Vacuum Heat Treatment
