 ตัวแทนจำหน่ายJoysun Single Stage Rotary Vane Vacuum Pump Model X 10- X 25
    JOYSUN Single Stage Rotary Vane Vacuum Pump Model X 10- X 25




Single Stage Rotary Vane Vacuum Pump Model X 10- X 25
 Good characteristic:
1.  High utmost vacuum rate, it can be less than 0.5mbar
2.  High deflating speed

3.  Low noise while working, lower than 67db
4.  Reliable structure to prevent oil circumfluence
5.  Strong capacity in deflating the vapor
6.  Keeping inlet air pressure 1.33*103Pa, it can be still working on.
7.  Protecting environment; an oil fog clearer is set in the vacuum, and no oil fog in the exhaust air
8.   Tight structure, scientific and reasonable design,  and it is easy to install in the industry system



 Technical Parameter:
Item Unit X-10 X-21 X-25
Rated speed m3/h 10 20 25
Utmost pressure mbar 2 2 2
Noise dB(A) 69 73 73
Working temperature 81 82 82
Oil consumption L 1 1 1
Vapour allowed pressure mbar 40 40 40
Vapour suction rate kg/h 0.15 0.3 0.4
Inlet size inch Rp1/2〞 Rp1/2〞 Rp1/2〞
Motor rated power kW 0.37 0.75 1.1
Motor rated speed rpm 1440 2880 2880
Total weight kg 17 18 19
Overall size cm 46.5 x 23.2 x 20 47.3 x 23.2 x 20 48 x 23.2 x 20

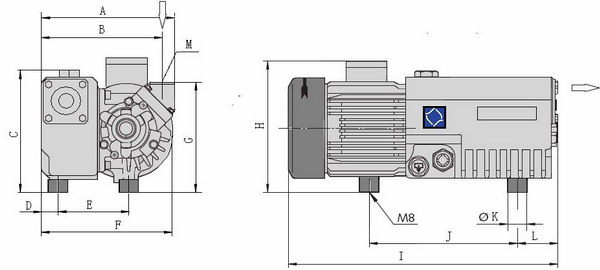

 Structural Dimensions:


Single Stage Rotary Vane Vacuum Pump Model X 10 - X 25


Dimension A B C D E F G H I J K L M
X-10 232 213 195 26 130 225 178 200 465 210 30 117 G3/4
X-21 232 213 195 26 130 225 178 200 473 210 30 117 G3/4
X-25 232 213 195 26 130 225 178 200 480 210 30 117 G3/4


 Application Range:
*Packaging, Sticking
——Packaging used by vacuum or inert gases for varied foods, metal items and electronic elements.
——Sticking for photographs and advertisement sheets.

*Lifting, Transportation, Sticking, Loading/Unloading
——Lifting of glass plate
——Sticking of board, plastic plank
——Loading/Unloading of non-magnetism item
——Loading/Unloading and transportation of paper sheets and paper boards in paper making and printing industry
——Transportation of powder materials

*Drying, Air-eliminating, Dipping
——Dipping and drying of electronic elements
——Air-eliminating of moulds, dopes and vacuum furnace
*Others:
——Laboratory Devices     ——Medical Treatment Devices
——Freon Recycling           ——Vacuum Heat Treatment
