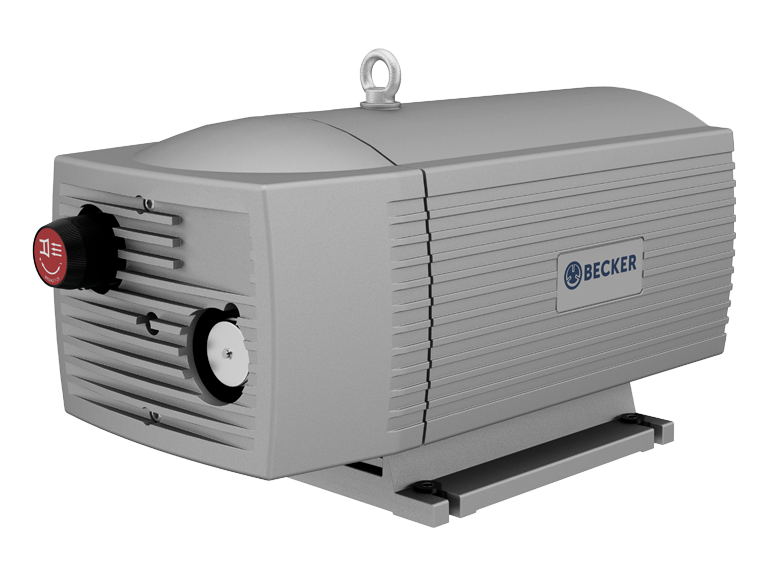

 Becker Rotary Vane Vacuum Pumps Oil-Free

VT SERIES
ROTARY VANE VACUUM PUMPS,OIL-FREE


Becker VT Series vacuum pumps are medium vacuum, dry displacement pumps and are designed to operate on a continuous duty basis at any vacuum level from open flow to 25 inches Hg. The VT Series dry rotary vane pumps utilize self-lubricating, graphite composite vanes, specifically engineered for Becker pumps. No oil to change and only minimal maintenance is required.

Each VT Series pump comes standard with:

  • Built-in inlet filter
  • Vacuum regulating valve
  • Vibration isolators
  • Discharge silencers

PRODUCT INFORMATION/ SPECIFICATIONS
Model Volume flow 50/60Hz Vacuum absolute 50/60Hz Power 50/60Hz
VT4.4 4.1/4.7 m3/h 150/150 mbar 0.18/0.21 kW
VT4.8 8/9.1m3/h 150/150 mbar 0.37/0.44 kW
VT4.10 10/12m3/h 150/150 mbar 0.37/0.45 kW
VT4.16 16/19m3/h 150/150 mbar 0.55/0.70 kW
VT4.25 25/30m3/h 150/150 mbar 0.75/0.90 kW
VT4.40 40/48m3/h 150/150 mbar 1.25/1.50 kW

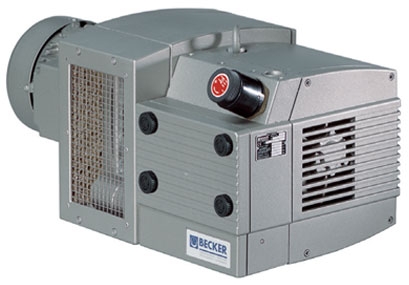

KVT SERIES
ROTARY VANE VACUUM PUMPS, OIL-FREE

Becker KVT Series vacuum pumps are medium vacuum, dry displacement pumps and are designed to operate on a continuous duty basis at any vacuum level from open flow to 27 inches Hg. The KVT Series dry rotary vane pumps utilize self-lubricating, graphite composite vanes, specifically engineered for Becker pumps. No oil to change and only minimal maintenance is required.

Each KVT Series pump comes standard with:

  • Built-in inlet filter
  • Vacuum regulating valve
  • Vibration isolators
  • Discharge silencers

PRODUCT INFORMATION/ SPECIFICATIONS
Model Volume flow 50/60Hz Vacuum absolute 50/60Hz Power 50/60Hz
KVT3.60 55/66 m3/h 100/100 mbar 2.2/2.6 kW
KVT3.80 67/78.5 m3/h 100/100 mbar 2.2/2.6 kW
KVT3.100 98/112 m3/h 100/100 mbar 3.0/3.6 kW
KVT3.140 129/154 m3/h 100/200 mbar 4.0/4.8 kW

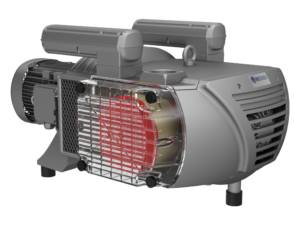

VTLF SERIES
ROTARY VANE VACUUM PUMPS,OIL-FREE

Becker VTLF Series vacuum pumps are medium vacuum, dry displacement pumps and are designed to operate on a continuous duty basis at any vacuum level from open flow to 27 inches Hg. The VTLF Series dry rotary vane pumps utilize self-lubricating, graphite composite vanes, specifically engineered for Becker pumps. No oil to change and only minimal maintenance is required.

Each VTLF Series pump comes standard with:

  • Built-in inlet filter
  • Vibration isolators
  • Vacuum safety valve
  • Discharge silencers

PRODUCT INFORMATION/ SPECIFICATIONS
Model Volume flow 50/60Hz Vacuum absolute 50/60Hz Power 50/60Hz
VTLF2.200 178/218 m3/h 200/200 mbar 4.0/4.8 kW
VTLF2.250 244/286 m3/h 200/200 mbar 5.5/6.6 kW
VTLF2.360 351/402 m3/h 250/250 mbar 11.0/13.2 kW
VLTF2.400 390/460 m3/h 200/200 mbar 7.5/9.0 kW
VTLF2.500 495/570 m3/h 250/250 mbar 11.0/13.2 kW
