 BECKER ROTARY VANE VACUUM PUMPS, OIL-LUBRICATED

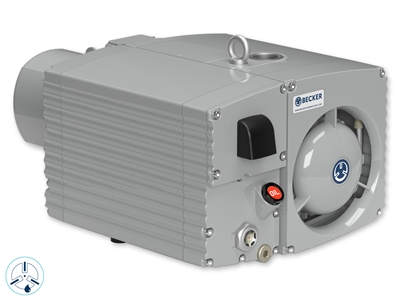

U5 SERIES
ROTARY VANE VACUUM PUMPS, OIL-LUBRICATED
The robustly constructed rotary vane pumps are suitable for higher pressure difference in vacuum applications.An eccentrically mounted rotor, with slots, rotates in a cylindrical housing and the precisely fitting sliding vanes move in the slots and separate the individual working chambers.Compared to dry-running rotary vane pumps,oil-lubricated pumps additionally seal the working chambers with the oil that is also transported.The pumps are thus able to generate a fine vacuum and are therefore suitable for applications that require a high vacuum.

Each U5 series pump comes standard with:
  • Most efficient IE3 motors in the industy
  • Gas ballast valve
  • Non return valve
  • High efficiency oil separator element

PRODUCT INFORMATION/SPECIFICATIONS

Model Volume flow 50/60Hz Vacuum absolute 50/60Hz Power 50/60Hz
U5.40 40/48 m3/h 1/1 mbar 1.1/1.35 kW
U5.71 70/84 m3/h ≤ 0.1/≤ 0.1 mbar 1.5/1.8 kW
U5.101 100/120 m3/h ≤ 0.1/≤ 0.1 mbar 2.2/2.2...2.64 kW
U5.166 165/198 m3/h ≤ 0.1/≤ 0.1 mbar 3/3.6 kW
U5.201 200/240 m3/h ≤ 0.1/≤ 0.1 mbar 4/4.5...4.8 kW
U5.301 300/360 m3/h ≤ 0.1/≤ 0.1 mbar 5.5/6.6 kW

U4 SERIES
ROTARY VANE VACUUM PUMPS,OIL-LUBRICATED

The robustly constructed rotary vane pumps are suitable for higher pressure differences in vacuum applications. An eccentrically mounted rotor, with slots, rotates in a cylindrical housing and the precisely fitting sliding vane move in the slots and separate the individual working chambers. Compared to dry-running rotary vane pumps, oil-lubricated pump additionally seal the working chambers with the oil that is also transported. The pumps are thus able to generate a fine vacuum and are therefore suitable for applications that require a high vacuum.

Each U4 series pump comes standard with :
  • Most effcient IE3 motors in the industry
  • Non return valve
  • High efficiency oil separator elemen

PRODUCT INFROMATION/ SPECIFICATIONS
Model Volume flow 50/60Hz Vacuum absolute 50/60Hz Power 50/60Hz
U4.400 SA/K 435/508 m3/h 3/3 mbar 11/13.2 kW
U4.400 F/K 435/508 m3/h 0.5/0.5 mbar 11/13.2 kW
U4.630 SA/K 624/732 m3/h 3/3 mbar 15/18 kW
U4.630 F/K 624/732 m3/h 0.5/0.5 mbar 15/18 kW
